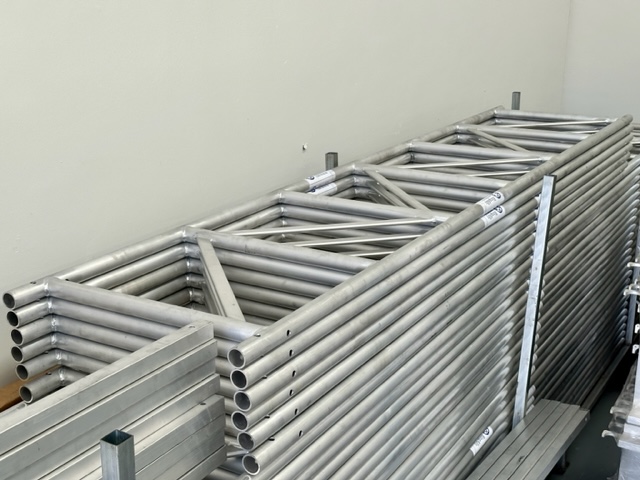

Lattice beams

Lattice Beams allow for bridging over larger areas and creating openings in the scaffold. Unlike Bridging Beams they do not have any set lengths for adjoining scaffold bays therefore are very versatile and can be used in many different applications. RingAlly Lattice Beams have been designed so that diagonal members do not interfere with coupler connections on both the horizontal and vertical members. This allows for better connection options along the length of the beams. The Lattice Beam Connector (with 4 pins) allows the extension of the lattice beams to greater lengths.

Enquire today for hire or buy!

Specifications:

750mm Lattice beams

Lengths: 7.95m / 6.85m / 5.75m / 4.65m / 3.55m

450mm Lattice beams

Lengths: 8.25m / 6.65m / 5.05m / 4.25m / 3.45m

Safety/ Technical Requirements:

6082-T6 grade for top & bottom chords, verticals and diagonals

Refer technical data for loading capacities
